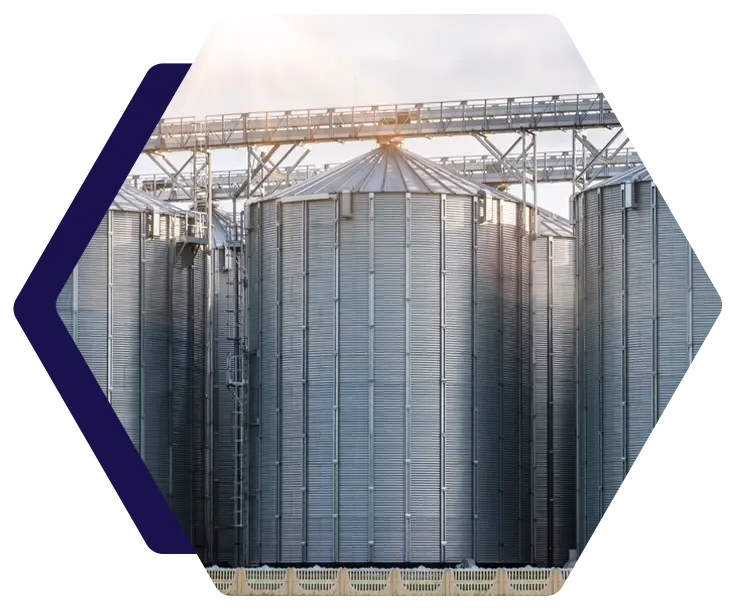

FLAT BOTTOM SILOS FOR BULK AND LONG-TERM DRY STORAGE
Capacity starting from 1000 MT to 12,500 MT. Flat bottom silos use for bulk and Long Time Dry Storage of large quantities of grain, seeds.
Flat bottom silos are designed for bulk and long-term storage of materials. Built according to German standard DIN 1055, these silos come with analysis certificates ensuring quality. They are perfect for large port facilities and provide excellent value with our proven expertise in the agricultural industry.
KEY FEATURES
-
Construction
Made with flat bottoms and designed using advanced technology, these silos can store various types of materials and withstand different conditions.
-
Capacity
Ideal for storing over 500MT of grain.
-
Design
Cylindrical panels are corrugated and assembled with bolts and nuts on sturdy concrete rings with deep foundations, tailored to fit the silo size.
-
Accessories
Include all necessary components, such as a sweep auger for easy discharge, sloped roofs with manholes, roof ladders, handrails, and inside and outside ladders with guards.
SPECIFICATION OF FLAT BOTTOM SILOS
- Range of Sizes: Available in diameters from 2.74m to 36.5m.
- Structural Stability: Designed with dynamic analysis considering seismic zones and wind loads specific to the installation area.
- Snow and Wind Load Calculations: Snow load calculations based on local conditions; wind load calculations consider silo height, especially when empty.
- High-Quality Materials: Manufactured using extremely strong materials.
- ZincAlume Steel Sheets: These sheets, with a strength of 350MPA, are used for better durability.
- Superior Corrosion Resistance: ZincAlume steel features an alloy coating of zinc, aluminium, and silicon applied at 600 degrees centigrade, along with special resin coating and passivation for enhanced scratch resistance.
- Customizable Zinc Coating:Standard GI Silos with G-140 (450gr/m²) zinc coating and G-115 (350gr/m²) zinc coating are available upon request.
